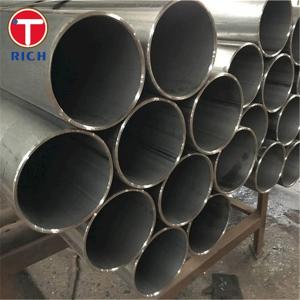

Welded Steel Tubes EN10217-1 ERW P195TR1: High Frequency Welded Steel Tube for Pressure Purposes
1. Material
The welded steel tubes conform to the EN10217-1 standard and are made from high-quality steel. Specifically, they are constructed using Electric Resistance Welding (ERW) technique. The primary material used is P195TR1, which is a non-alloy quality steel.
2. Specification
The welded steel tubes adhere to the specifications outlined in the EN10217-1 standard. This standard specifies the technical delivery conditions for welded steel tubes for pressure purposes. The tubes are designed to withstand high-pressure environments and are suitable for various applications that involve the transportation of fluids or gases under pressure.
3. Chemical Composition
The chemical composition of the P195TR1 steel used in the welded steel tubes is as follows:
| Element | Composition (Percentage) |
| Carbon (C) | 0.13 (max) |
| Manganese (Mn) | 0.70 (max) |
| Phosphorus (P) | 0.025 (max) |
| Sulfur (S) | 0.020 (max) |
| Silicon (Si) | 0.35 (max) |
4. Mechanical Properties
The welded steel tubes possess specific mechanical properties that ensure their durability and reliability. The following table presents the mechanical properties of the P195TR1 steel:
| Property | Value |
| Yield Strength (ReH) | 195 MPa (min) |
| Tensile Strength (Rm) | 320 to 440 MPa |
| Elongation (A) | 27% (min) |
| Impact Strength (KV) | 27 Joules (at -20°C) |
5. Steel Grade
The steel grade used for the welded steel tubes is P195TR1. This grade signifies a non-alloy quality steel with specific mechanical and chemical properties suitable for pressure-related applications.
6. Application
The high-frequency welded steel tubes conforming to the EN10217-1 standard, using P195TR1 steel, find numerous applications in various industries. Some common applications include:
- Pressure vessels
- Pipelines for fluid and gas transportation
- Structural components in machinery
- Automotive industry
- Construction projects
Haiyan Sanxin Steel Pipe Factory is a leading manufacturer of steel pipes in China. Located in a region with excellent geographical advantages, the factory is situated close to the Zhoushan Port and Ningbo Port.
Our factory covers an area of more than 25,000 square meters and has been in the steel pipe manufacturing business for 20 years. Over this period, we have accumulated a wealth of professional experience, which has helped us establish ourselves as a trusted name in the industry.
At our factory, we specialize in the production of various types of steel pipes, including stainless steel pipe, carbon steel pipe, copper pipe, steel pipe,seamless steel pipe and welded pipe. Our expertise in this field is evident from the 12 patents that we hold, which demonstrate our commitment to innovation and excellence.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
