Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube

TORICH INTERNATIONAL LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube

Brand Name : TORICH

Model Number : 30 - 250 mm

Certification : ISO

Place of Origin : ZHEJIANG

MOQ : 1 Ton

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 Tons Per Year

Delivery Time : 4-6 Weeks

Packaging Details : Paint oil on the surface ;Bundle packing by Iron Strips.

Thickness : 2 - 30mm

Outer Diameter : 30 - 250 mm

Application : Hydraulic Pipe

Grade : 10#-45#, 16mn, Q195-Q345, ST35-ST52

Alloy Or Not : Non-alloy

Surface : Customers't Requirement

Contact Now

Cold Drawn Precision Round Carbon Steel Tube

Mechanics performance:
Material Tensile strength Yield strength Elongation Hardness
CK20/20#/AISI1020 >520 N/ mm2 >375 N/mm2 >15% >85HB
CK45/45#/AISI1045 >600 N/ mm2 >520 N/ mm2 >15% >85HB
ST52/16Mn/Q345D >600 N/ mm2 >520 N/ mm2 >15% >85HB
25Mn/STKM 13C-T >600 N/ mm2 >530 N/ mm2 >15% >85HB

Variety :
Processing Cylinder
Diameter
Straightness Size
Accuracy
W.T/mm Inner Bore Roughess
Cold drawn/cold rolled ID30-250 0.3 H9-H11 ±10% 0.4~1.6um
Honed tube ID50-250 0.3 H7-H9 ±10% <0.4um

Condition Material Grade T.S (MPa) lowest Y.S (MPa) lowest Elongation (%)
BKS ST35 (10#) ≥420 ≥315 ≥14
BKS ST45(20#) ≥520 ≥375 ≥12
BKS ST52(16Mn) ≥580 ≥420 ≥10
GBK ST35 (10#) ≥315 ≥35
GBK ST45(20#) ≥390 ≥32
GBK ST52(16Mn) ≥490 ≥30
NBK ST35 (10#) 340-470 ≥235 ≥32
NBK ST45(20#) 440-570 ≥255 ≥30
NBK ST52(16Mn) 490-630 ≥335 ≥28

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube

1.Transportation: By Sea

20' FCL (means the length than 5,800mm)
40' FCL (means the length than 11,800mm)
2.Bulk cargo (means the quantity is more than 200MT)
3.With regards to other length or quantity, it should be taken by clients themselves
4.Delivery time: 25-35days to the dispatch port after receipt of T/T or L/C at sight.
5.Optional: wooden box; caps; vanished coating.
6.Payment: T/T or L/C at sight, T/T 100% in advance (If order less than 3MT)
7.Price item: FOB, CFR, CNF, C&F, CIF
8.Origin: China
9.Third party inspection: BV, SGS, Lloyds. The Expense needs to stand by clients.

1.Are you a trading company or manufacturer?

We are the professional manufacturer of precision seamless steel pipe since the year 1992.

2. How can I get the price?

We usually quote within 24 hours after we get your inquiry by telling us the material, out diameter,

wall thickness length, quantity and application of the steel pipe which you need.

If you are very urgent to get the price.

please inform us in email so that we will regard your inquiry priority.

3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. we will provide you

the sample for free, however we could only make sure the same material, the dimension will be

much similar as your request but not same.

And customer should afford the charge of shipment.

4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

if normal order 25-30days.

5. What is your terms of delivery?
We accept FOB CIF EXW CFR.







Product Tags:

OD 250mm Carbon Steel Tube



Q345 Carbon Steel Tube



Cold Drawn Steel Hydraulic Tubing


Quality Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube wholesale

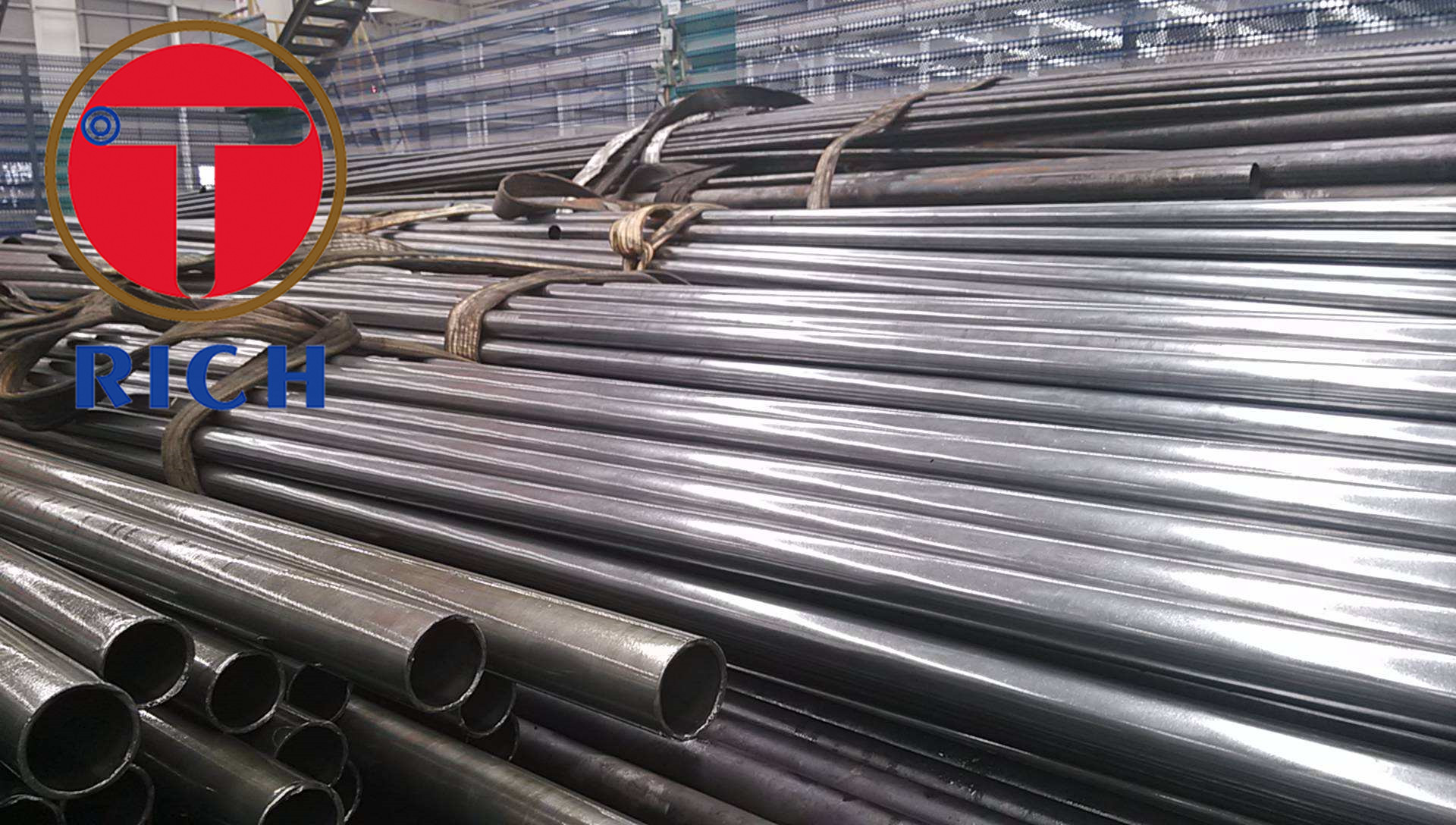

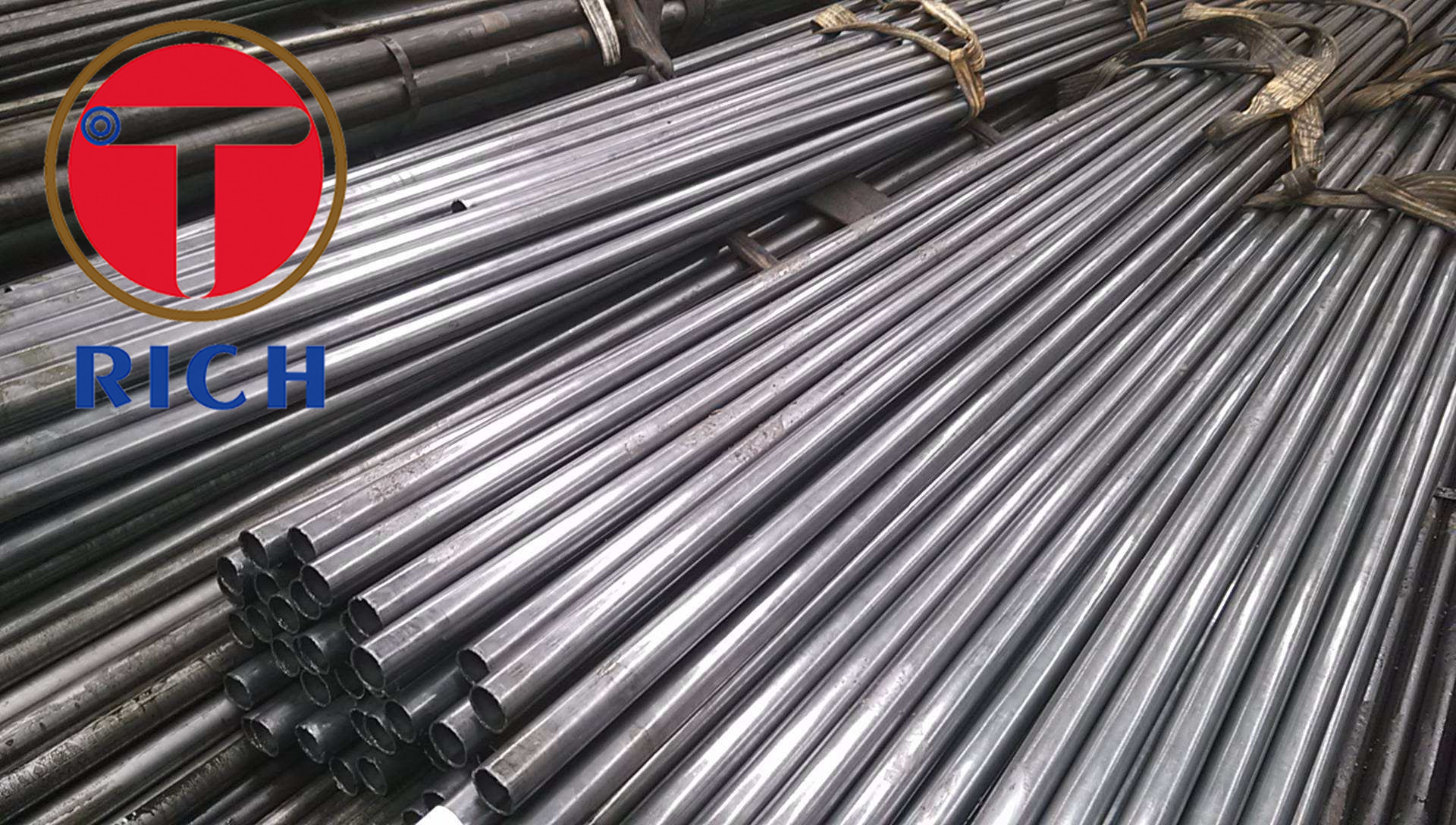

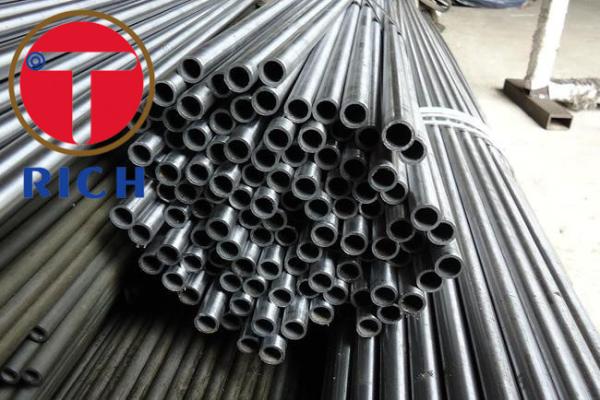

Hydraulic Cold Drawn Q345 OD 250mm Carbon Steel Tube Images
