Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering

Brand Name : TORICH

Model Number : ASTM A519

Certification : ISO9001, ISO14001, TS16949

Place of Origin : ZHEJIANG, CHINA

MOQ : 2 Tons

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 6000 Tons per Year

Delivery Time : 30-45 work days

Packaging Details : Carbon Steel Tubes are packed in wooden boxes or in seaworthy packing.

Product name : Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering

Keyword : Precision Steel Tube

Material : 1045 4130 4140

WT : 1mm~50mm

OD : 6mm~350mm

Tolerance : +/-0.1mm

Surface : Anti Rust Oil

Application : For Auto Parts, Machinery Parts

Contact Now

Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering

TORICH is able to manufacture 4130 4140 precision seamless tubes accordingto ASTM A519, which covers both
seamless hot-finished mechanical tubing and seamless cold-finished mechanical tubing The tubes can be furnished
in the following shapes, as specified by the purchaser: round, square, rectangular, and special sections.
Standard
ASTM A519
Key Word
Seamless High Precision Steel Tube
Material
1045 4130 4140 etc
Size
OD: 6-350mm; WT: 1-50mm; Length: max12000mm
Manufacture
Seamless Cold Drawn And Cold Rolling
Application
For Machinery, Mechanical Engineering
Test
Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test

Chemical Requirements

Steel
grade
C
max
Mn
P
max
S
max
Si
max
Cr
max
Mo
1045
0.45-0.50
0.60-0.90
0.04
0.05
4130
0.28-0.33
0.40-0.60
0.04
0.04
0.15-0.35
0.80-1.10
0.15-0.25
4140
0.38-0.43
0.75-1.00
 0.04
0.04
0.15-0.35
0.80-1.10
0.15-0.25

Mechanical Properties

Steel Grade
Tensile Strength, min
Yield Strength, min
Enlongation %, min
Rockwell Hardness B Scale
1045 HR
75 ksi 517Mpa
45ksi 310Mpa
15%
80
1045CW
90ksi 621Mpa
80ksi 552Mpa
5%
90
1045SR
80ksi 552Mpa
70ksi 483Mpa
8%
85
1045A
65ksi 448Mpa
35ksi 241Mpa
20%
72
1045N
75ksi 517Mpa
48ksi 331Mpa
15%
80
4130 HR
90ksi 621Mpa
70ksi 483Mpa
20%
92
4130 SR
105ksi 724Mpa
85ksi 586Mpa
10%
95
4130A
75ksi 517Mpa
55ksi 379Mpa
30%
81
4130N
90ksi 621Mpa
60ksi 414Mpa
20%
89
4140 HR
120ksi 855Mpa
90ksi 310Mpa
15%
100
4140 SR
120ksi 855Mpa
100ksi 689Mpa
10%
100
4140 A
80ksi 552Mpa
60ksi 414Mpa
25%
85
4140 N
120ksi 855Mpa
90ksi 621Mpa
20%
100

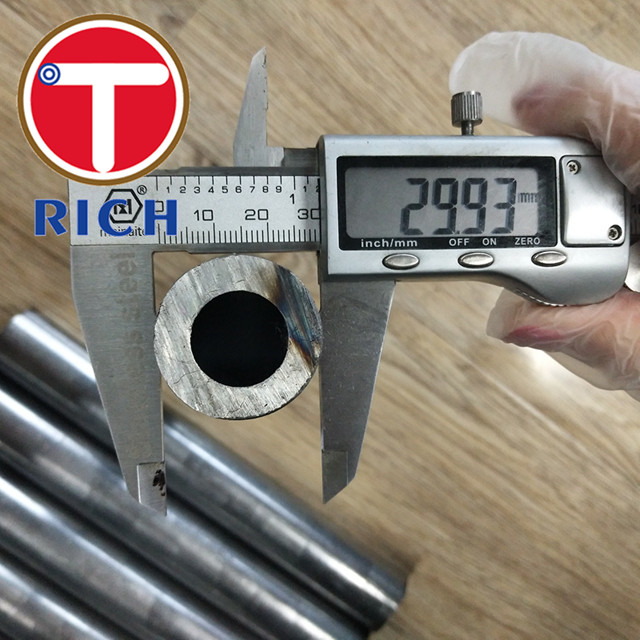

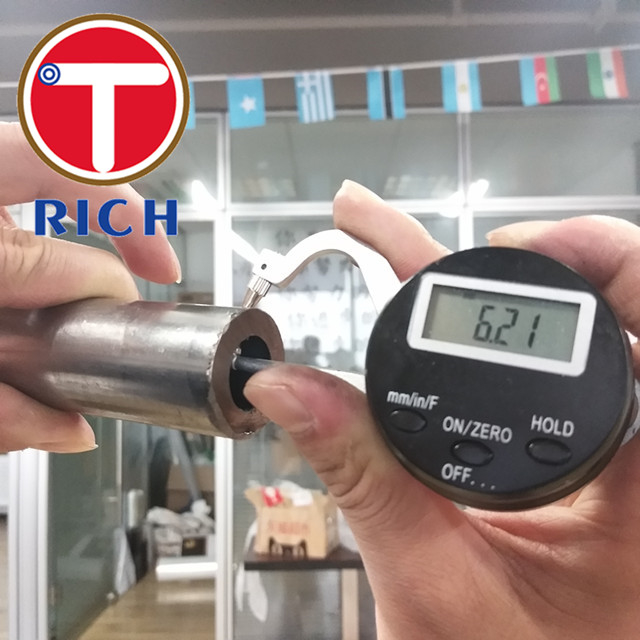

Product Show of High Precision Steel Tubes
Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical EngineeringAnti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering
Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical EngineeringAnti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering

Manufacturing Process

Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering
Packing & Delivery

Packing Details : In bundles or in wooden boxes packaging

Delivery Details : 30-60days

Anti Rust Seamless WT 50mm ASTM A519 Precision Steel Tube For Machinery, Mechanical Engineering
Our Certifications
FAQ

Q: Are you trading company or manufacturer ?
A: A professional steel pipes materials inventor, manufacturer and solution provider


Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.


Q: Do you provide samples of carbon seamless steel tube ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
