ASME SA179 Seamless Carbon Steel Tubing: Cold-Drawn Low-Carbon Steel Tube For Heat-Exchanger
ASME SA179 seamless carbon steel tubing is engineered for use in heat exchangers and condensers. Renowned for its high durability and ability to withstand extreme conditions, it is a preferred material in various industrial applications. This article delves into its material properties, specifications, key features, chemical composition, mechanical properties, steel grades, applications, and possible alternative grades.
Material
ASME SA179 tubing is made from cold-drawn, low-carbon steel. This manufacturing process enhances its strength and surface finish, making it ideal for critical temperature environments. Its composition ensures good formability and weldability, which are critical in heat exchanger manufacturing.
Specification
ASME SA179 specifications cover seamless, cold-drawn, low-carbon steel tubes designed specifically for heat exchangers and similar applications. The standards ensure that the material satisfies the rigid quality requirements necessary for high-performance industrial components.
Key Features
- Seamless Construction: Eliminates the risk of weak welds, enhancing longitudinal strength.
- Cold-Drawn Process: Increases tensile strength and improves surface finish.
- Low-Carbon Steel: Enhances weldability and machinability.
- Thermal Stability: Well-suited for high-temperature applications in heat exchangers.
Chemical Composition
The chemical composition of ASME SA179 is crucial for its performance. Below is a typical breakdown:
| Element | Composition (%) |
| Carbon (C) | 0.06 - 0.18 |
| Manganese (Mn) | 0.27 - 0.63 |
| Phosphorus (P) | ≤ 0.035 |
| Sulfur (S) | ≤ 0.035 |
Mechanical Properties
ASME SA179 tubes must adhere to precise mechanical properties to ensure effective performance under pressure and temperature variations. The table below outlines the mechanical requirements:
| Property | Value |
| Tensile Strength (MPa) | ≥ 325 |
| Yield Strength (MPa) | ≥ 180 |
| Elongation (%) | ≥ 35 |
Steel Grade
ASME SA179 tubing is primarily available in a single steel grade that adheres to the foregoing specifications. Its low-carbon, high-manganese steel composition is formulated for improved strength and shape retention.
Application
These tubes play a critical role in several industrial domains:
- Heat Exchangers: Utilized extensively due to their thermal stability.
- Condensers: Chosen for their ability to withstand pressure fluctuations and corrosion.
- Boiling Equipment: Utilized in various forms of boilers due to high thermal tolerance.
Possible Alternative Grades
In certain situations, alternative steel grades might be utilized to meet specific application requirements:
- ASTM A214: Electric-resistance-welded carbon steel heat exchanger tubes.
- ASTM A210: Medium-carbon steel tubes for boiler and superheater services.
- ASTM A213: Seamless ferritic and austenitic alloy steel boiler, superheater, and heat exchanger tubes.
These alternatives might be considered when specific application demands exceed the capabilities of ASME SA179.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|

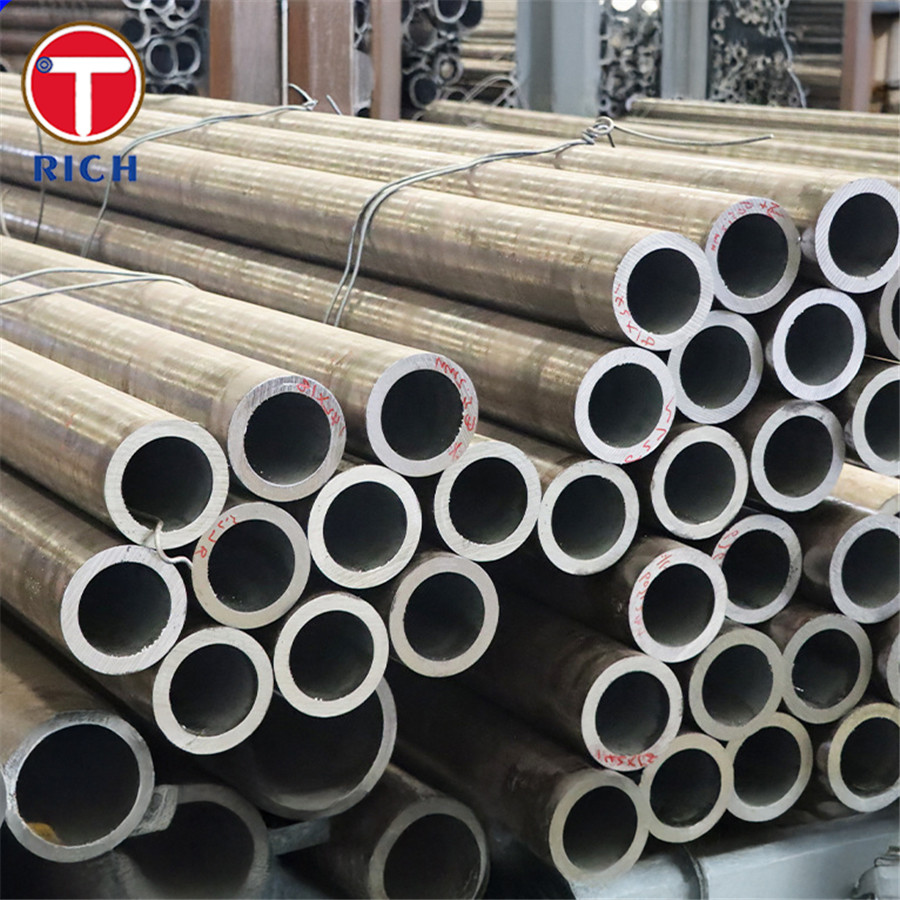

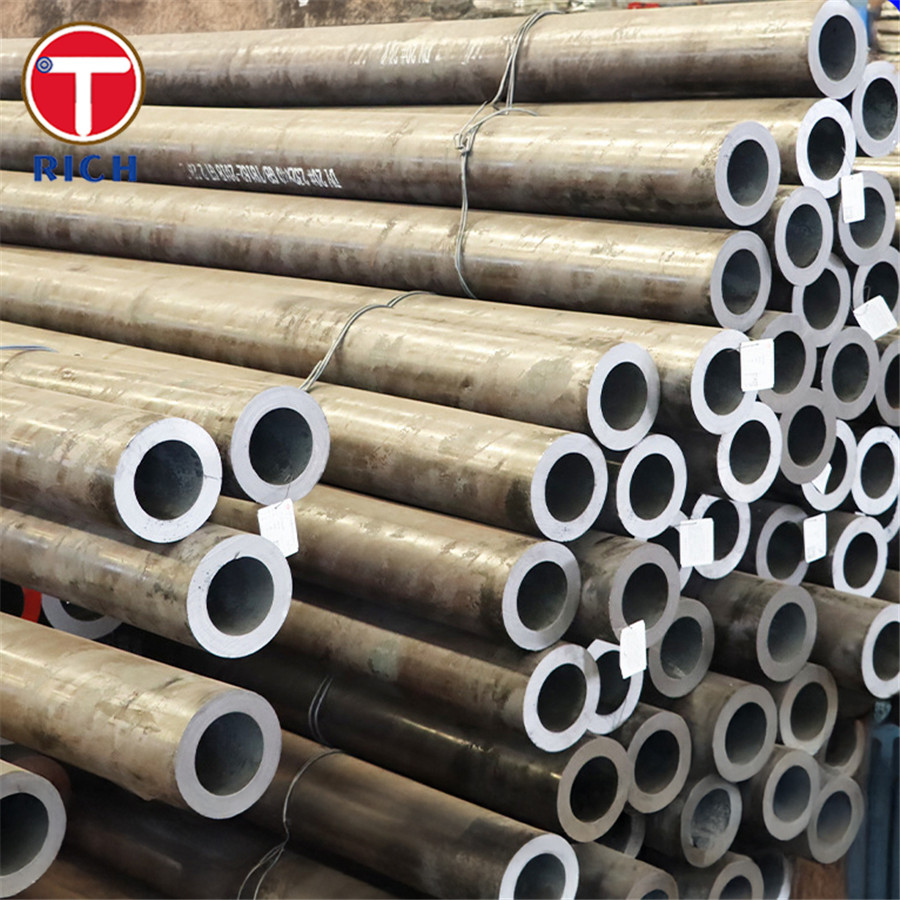

ASME SA179 Seamless Carbon Steel Tubing Cold-Drawn Low-Carbon Steel Tube For Heat-Exchanger Images
|
